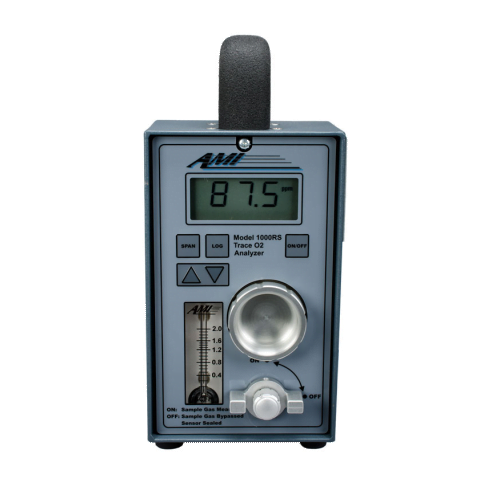

O2 Portable Analyzer – 1000RS (Front)
O2 Portable Analyzer – 1000RS (Side)
O2 Portable Analyzer – 1000RS (Back)

AMI 1000RS

Portable O2 Analyzer

Category:

Description

Portable Oxygen Analyzer Model 1000RS

  • Trace oxygen measurement from 0.05ppm to 25.0%
  • Rugged, small, portable unit
  • Simple operation
  • Complete flow control and indication provided
  • Single quick-disconnect sample connection
  • Patented cell block provides purge capability
  • Very fast come-down time
  • Can be accurately calibrated on air
  • Sensor sealed off when not in use
  • Logs oxygen, temperature and battery voltage readings for subsequent recovery
  • Up to 350 hour battery life
  • Quickly and easily replaceable sensor, no tools required
  • Calibration history
  • Sensor life indication
  • Designed to be intrinsically safe
  • Approved by CSA International to UL and CSA standards Class 1, Div. 1, Groups B,C,D
RangePPM : 0-10ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm
%Vol : 0-.500%, 0-1%, 0-5%, 0-10% and 25%
Display3 ½ digit LCD. Reads full scale from 0.00ppm to 25.0% independently of output range selection
Output0-1VDC
Data LoggingLogs data for 10 days @ 1 minute intervals, 20 days @ 2 minute intervals, etc.
Power115/230VAC to 12VDC battery charger. Rechargeable NiCad batteries, 350 hours continuous.
Operating Temperature-1 to 45 ˚ C
Dimension4.5”W x 9.5”H x 4.5”D
Weight2.25 kg
ApprovalSA International to UL and CSA standards Class 1, Div. 1, Groups B,C,D
