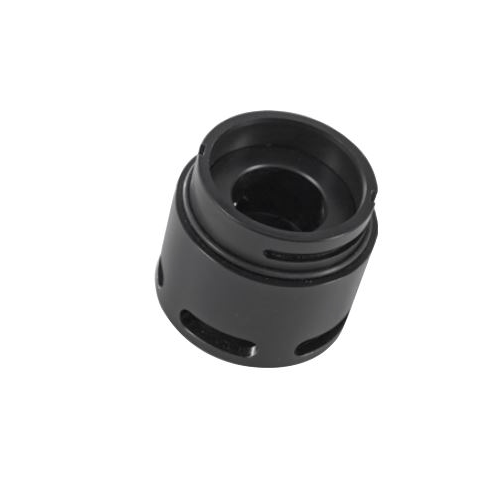

Deluge Guard
Duct Mount Kit
Calibration Adapter
Flow Cell
Sensor Simulator
Universal Mounting Kit

Meridian

Universal Gas Detector

Description



Scott’s Meridian Universal Gas Detector is an innovative next generation gas detection solution. Meridian’s single detector head supports combustible and toxic sensors. Designed for ease of use, Meridian significantly reduces upfront investment and ongoing maintenance costs.  With global approvals and SIL2 certification from TUV-Rheinland, Meridian ensures best in class performance and safety.



Key Features:

  • Single detector head for all sensor types – whether electrochemical, catalytic bead, infrared, or solid state MOS
  • Full range of combustible and toxic sensors including Scott Rock Solid sensors
  • Supports up to three sensors per transmitter
  • Multiple communication protocols – 4-20mA, and Modbus, are standard; Options include  HART, Wireless HART, Wireless ISA100.11a
  • Global regulatory approvals and SIL2 third party certification from TUV Rheinland





Sensor TypesCombustible: Catalytic bead, Infrared sensors
Electrochemical: Standard and Scott Rock Solid sensors
Solid State: Metal Oxide Semiconductor sensor
*Please find sensor details in Additional Information tab*
WeightAluminum enclosure: 3 kg
Stainless steel enclosure: 5 kg
EnclosureCopper-free aluminum, 316 stainless steel
NEMA 4X, IP66 Protection
Communication4–20 mA, MODBUS; Optional HART, Wireless HART, ISA100.11A protocols available
Maximum 4–20 loop load, OHMS (@24 VDC)680 Ohms current source
680 Ohms current sink
Operating Voltage 3/4 wire10-30 VDC (24 VDC nominal)
Power Consumption2.2 - 3.2 Watts based on sensor configuration
Alarms3 programmable alarms with set and reset (adjustable deadband); 1 fail safe system fault
Relays4 Form C relays, rated 5 Amp at 30 VDC/240 VAC, resistive loads
DisplayGraphical LCD display visible in bright sunlight.
Operating Temperature-40°C to 75°C
Humidity5–95% RH (non condensing)
Global ApprovalsIECEx, cCSAus, ATEX, INMETRO, EURASIAN CUSTOMS UNION, CHINA EX, CCCF, RCM, FCC,
INDUSTRY CANADA, CE, ANATEL, MARINE DIRECTIVE SHIP'S WHEEL, ABS, SIL-2 (Third Party
Certification by TUV-Rheinland)
Area ClassificationClass I Div. 1 Group ABCD, Class II Div. 1 Group EFG, Class III
Equipment Group I/II, Zone 0/20 & Zone 1/21, IIC

Additional information

Combustible Gas List

Acetaldehyde / Acetone / Acetylene / Ammonia / Benzene / Butadiene / Butane / Butanol / Butyl Acetate / Chlorobenzene / Cyclohexane / Decane / Diethyl Ether / Ethane / Ethanol / Ethyl Acetate / Ethylbenzene / Ethylene / Ethylene Oxide / Heptane / Hexane / Hydrogen / Isobutane / Isobutylene / Isopentane / Isopropanol / Methane / Methanol / Methyl Chloride / Methylene Chloride / Methyl Ethyl Ketone (MEK) / Octane / Octamethyl / Trisiloxane / Pentane / Propane / Propylene / Propylene Oxide / Styrene / Tetrahydrofuran / Toluene / Vinyl Chloride / Xylene

Toxic Gas List

Ammonia / Arsine / Boron Trichloride / Boron Trifluoride / Bromine / Carbon Dioxide / Carbon Monoxide / Chlorine / Chlorine Dioxide / Diborane / Ethylene Oxide / Fluorine / Germane / Hydrogen / Hydrogen Bromide / Hydrogen Chloride / Hydrogen Cyanide / Hydrogen Fluoride / Hydrogen Sulfide / Methanol / Methyl Mercaptan / Methyl Iodide / Monomethyl / Hydrazine (MMH) / Nitric Oxide / Nitrogen Dioxide / Oxygen / Ozone / Phosphine / Silane / Silicon Tetrafluoride / Sulfur Dioxide / Tetraethoxysilane (TEOS) / Tungsten Hexafluoride
