Offshore IR Point Detector

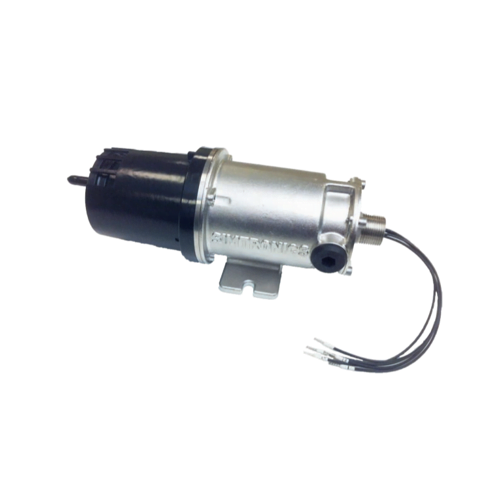

The Simtronics GD10P detector is the benchmark for combustible gas detection on offshore installations. It has set the standard for gas detectors in the areas of safety, stability and low maintenance. GD10P comes with 5 years warranty.

The GD10P has been designed with features that provide an effective response to the detection of gas hazards in a wide range of industrial environments from boiler plant rooms to offshore petrochemical installations.

These infrared gas detectors differ from all other models, because they utilise silicon based solid-state infrared sources. The complete optomechanical design and construction is so stable that an ultra fast speed of response can be achieved whilst providing unparalleled service life and detector stability, thus saving on maintenance and service costs.


Key Features:

– Life-safety performance approved; ATEX EN60079-29-1 & CSA 22.2 No. 152

– 15 year warranty IR sources – solid state optics

– T90 < 2s with option for selectable response rate

– Individually heated sapphire mirror (not conducted heat)

– No field recalibration

– Dual skin weather protector – no filters / gauzes or sinters

– Planned maintenance with HART

– SIL 2/3 certified


HART Protocol logo300dpi  TÜV logo   CSA logo

Sensor TypesHydrocarbons / CO2
Weight2.9 kg
EnclosureStainless steel SIS2343 (ASTM 31 6)
CommunicationsCurrent source 4 – 20 mA / HART®
Maximum Load Impedance500 Ohm
Operating Voltage24 V DC, range1 8-32 V DC
Power ConsumptionApprox. 3.5 W
Operating Temperature-40°C to + 65°C
Humidity1 00% RH
Warranty5 years full warranty on complete instrument
15 years warranty on the IR-sources
Global ApprovalsATEX, CSA, IECEx, INMETRO, MED, ABS, Qualified for SIL2 and SIL3 systems, EExd I IC T6, IP66/IP67
